物理规格#
硬件参数#
| 规格 | |
|---|---|
| CPU | MediaTek MT7986(Filogic 830) Quad core ARM Cortex A53+MT7531 chip design |
| SDRAM | 2 GB DDR4 |
| 板载存储 | MicroSD (TF) 卡, 8GB eMMC 板载 |
| GPIO | 26 Pin GPIO，部分引脚可用于特定功能，包括 UART、I2C、SPI、PWM、I2S |
| 板载网络 | 5 口 10/100/1000Mbps 以太网 |
| SFP | 2 个 SFP 2.5GbE 接口 |
| Wi-Fi | Wi-Fi 6 4x4 2.4G Wi-Fi(MT7975N) + 4x4 5G Wi-Fi(MT7975P) |
| Mini PCIe | Mini PCIe 通过 USB 接口 |
| M.2 接口 | M.2 KEY-M PCIe 接口 |
| USB | 1 个 USB 3.0 主机接口，2 个 USB 接口配插槽 |
| 按钮 | 重置按钮，WPS 按钮，启动开关 |
| LED 指示灯 | 电源状态指示灯和 RJ45 指示灯 |
| 电源 | 12V/2A 直流电源输入 |
| 尺寸 | 100.5x148mm，和 Banana Pi BPI-R64 及 Banana Pi BPI-R2 尺寸相同 |
| 重量 | 200g |

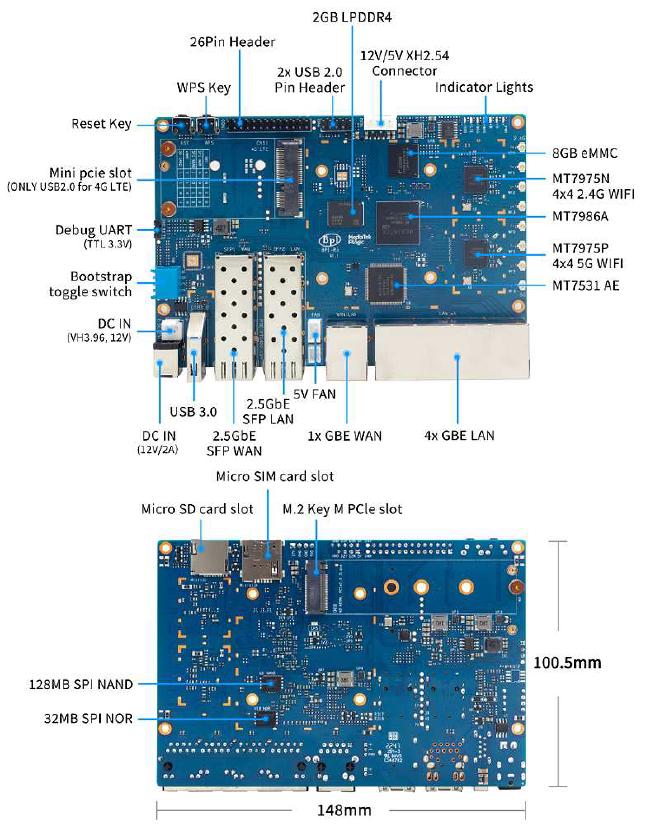

接口示意图#
开发#
软件源代码#
Official BPI-R3 kernel v5.15 + firmware repo: https://github.com/BPI-SINOVOIP/BPI-R3-bsp-5.15
Official OpenWrt 21.02 for BPI-R3 repo: https://github.com/BPI-SINOVOIP/BPI-R3-OPENWRT-V21.02.3
Instructions: https://forum.banana-pi.org/t/banana-pi-bpi-r3-openwrt-image/13236/4 Baidu link: https://pan.baidu.com/s/1JSQ7wJTCeK4JqWR_XB-LLQ?pwd=6vdb (Pincode: 6vdb) Google link: https://drive.google.com/file/d/13nQMfM0_XTyWcILhNxv_9E4TIvb65RI0/view?usp=sharing
Frank’s U-Boot repo: https://github.com/frank-w/u-boot/tree/2023-04-bpi
Frank’s BPI-R3 kernel v6.1 repo https://github.com/frank-w/BPI-Router-Linux/tree/6.1-main
Unofficial wiki (English): https://wiki.fw-web.de/doku.php?id=en:bpi-r3:start
参考文档#
BPI-R3 DXF file : https://drive.google.com/file/d/1bc5mCtJlnPi84q7VZYaQkZhRUU4HUfUd/view?usp=sharing
BPI-R3 schematic diagram Baidu Cloud: https://pan.baidu.com/s/1-GJNHAqNy7-JFTx22uoSfQ?pwd=8888 (pincode:8888) Google Drive: https://drive.google.com/file/d/1ED2z_e01Y0e6LDzMC_vLhCsTHEZTGwcg/view?usp=sharing
MT7986A_Datasheet_1.15 : https://drive.google.com/file/d/1t_nuPTeoAcFb1dmEe4kJVlLWdHcAA6OB/view?usp=sharing
MT7986A_Reference_Manual_for_BPI-R3 : https://drive.google.com/file/d/1biSJmxnIpNzQroYDg9mtPtSTAv4i0DFf/view?usp=sharing
[Tutorial] Build, customize and use MediaTek open-source U-Boot and ATF : https://forum.banana-pi.org/t/tutorial-build-customize-and-use-mediatek-open-source-u-boot-and-atf/13785
BPI-R3 OpenSource Routerboard how to burn and test image: https://www.youtube.com/watch?v=Xaf_SC7fPDM
BPI-R3 CE,FCC,RoHS certificate : https://banana-pi.org/en/bpi-honor/
Banana Pi BPI-R3 Review: Details, Pricing, & Features : https://androidpimp.com/embedded/banana-pi-bpi-r3-router-board/?fbclid=IwAR1G4cEco5iULwKG-C-n8MIiWOWZMhPborqmCzS2d3KIHx-eNQS-54lZnps
Update OpenWrt to 22.03.3 SNAPSHOT: https://forum.banana-pi.org/t/bananapi-bpi-r3-update-openwrt-to-22-03-3-snapshot/14984
3D printed cases: https://forum.banana-pi.org/t/banana-bpi-r3-3d-printed-case/14246/43
Cooling solutions topic: https://forum.banana-pi.org/t/bpi-r3-running-hot/14750
Bananapi R3 review with WiFi / CPU benchmarks and power consumption numbers: https://wiki.junicast.de/en/junicast/review/bananapi-BPI-R3
[BPI-R2/R64/R3] OpenWrt built on devices : https://openwrt.org/docs/guide-developer/toolchain/building_openwrt_on_openwrt
[Tutorial] Reworking BPI-R3 nand Flash: https://forum.banana-pi.org/t/tutorial-reworking-bpi-r3-nand-flash/15492
BananaPi BPI-R3, now with ROOTer support!: https://wirelessjoint.com/viewtopic.php?t=3852
OpenWRT official for Sinovoip BananaPi BPi R3: https://openwrt.org/toh/sinovoip/bananapi_bpi-r3
Setting up the Banana-R3 with OpenWRT: https://uglyscale.press/2023/09/13/setup-the-banana-r3-with-openwrt/
OpenWRT社区官主支持 https://openwrt.org/toh/sinovoip/bananapi_bpi-r3
系统镜像#
OpenWRT#
Latest official OpenWRT snapshot image: https://firmware-selector.openwrt.org/?version=SNAPSHOT&target=mediatek%2Ffilogic&id=bananapi_bpi-r3 Discuss on OpenWRT forum: https://forum.openwrt.org/t/openwrt-support-for-banana-pi-bpi-r3/154294
2022-07-20 udptae BPI-R3 OpenWRT 21.02 linux kernel 5.4, wifi 6 2.4G and 5G mac80211 opensource wifi driver working fine support nand flash ,SD card ,eMMC flash boot. for BPI-R3 production version hardware Google Drive: https://drive.google.com/file/d/13nQMfM0_XTyWcILhNxv_9E4TIvb65RI0/view?usp=share_link Baidu Cloud: https://pan.baidu.com/s/1-5tqHEacMw1wlTSEK1ey9A?pwd=8888 (pincode: 8888)
2022-06-01udptae BPI-R3 OpenWRT 21.02 linux kernel 5.4, wifi 6 2.4G and 5G working fine support nand flash ,SD card ,eMMC flash boot. for BPI-R3 production version hardware Google drive : https://drive.google.com/file/d/18_xst-diDdCg7CeSum1M5FDbbo31jFJq/view?usp=drivesdk Baidu link: https://pan.baidu.com/s/1idqU1-bB4XD1LTGDAJxRGA?pwd=chez Pincode: chez Discuss on forum : https://forum.banana-pi.org/t/banana-pi-bpi-r3-openwrt-image/13236
2022-09-28 udptae BPI-R3 OpenWRT 21.02 linux kernel 5.4, wifi 6 2.4G and 5G working fine support nand flash ,SD card ,eMMC flash boot, support EC25 LTE 4G Modules for BPI-R3 production version hardware Google drive: https://drive.google.com/file/d/1oNcnIl8bDla9pPWUd-TFPXXphsCMsJt0/view?usp=sharing Baidu link: https://pan.baidu.com/s/1v4sKfAuax3AfHNtp_2RP_g?pwd=mebq (Pincode: mebq)
Linux#
Ubuntu#
2022-12-18-ubuntu-22.04-server-bpi-r3-aarch64-sd-emmc.img Baidu Cloud: https://pan.baidu.com/s/1PajBEeFkgzgBdmJa5KpHpA?pwd=8888 (pincode: 8888) Google Drive: https://drive.google.com/file/d/1m9TFmnICj45b61evvmz9ja0g7kH641SG/view?usp=share_link
Debian#
[BPI-R3] Debian Bullseye Image, this image is share by Frank: https://forum.banana-pi.org/t/bpi-r3-debian-bullseye-image/14541
2022-12-18-debian-11-bullseye-lite-bpi-r3-5.15-sd-emmc.img, Kernel 5.15.77 Baidu Cloud: https://pan.baidu.com/s/195HeMXjK-rmCEZTnYBCndA?pwd=8888 (pincode: 8888) Google Drive: https://drive.google.com/file/d/1NRR1hKsv6vE1bHOyRjcCGiHgmgaRxt72/view?usp=share_link
2022-12-18-debian-10-buster-lite-bpi-r3-5.15-sd-emmc.img, Kernel 5.15.77 Baidu Cloud: https://pan.baidu.com/s/1_OGb8ZMF4pWIbaKJ0z2JsA?pwd=8888 (pincode: 8888) Google Drive: https://drive.google.com/file/d/1Q9ZSCZ8_ZI6o5SG4_iOn-mQUaci6Qfrt/view?usp=share_link
其他镜像#
Frank’s image#
Frank’s Debian Bullseye image: https://forum.banana-pi.org/t/bpi-r3-debian-bullseye-image/14541
Frank’s Ubuntu 22.04 image: https://forum.banana-pi.org/t/bpi-r3-ubuntu-22-04-image/14956
Arch linux#
Image: https://forum.banana-pi.org/t/bpi-r3-imagebuilder-r3-archlinux-ready-for-testing/15089
常见问题#
Failed to save the configuration Enter “mtd erase /dev/mtd10”
